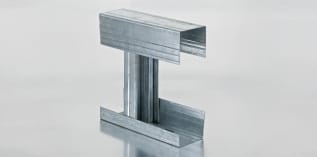

Shaft Wall Light Gauge Steel Framing System

The Shaft Wall Light Gauge Steel Framing System is a high-strength metal framing solution designed specifically for elevator shafts, service shafts, and vertical technical enclosures in modern buildings.

Manufactured from precision cold-rolled steel with high zinc galvanization, this system provides excellent load-bearing capacity, dimensional accuracy, and long-term corrosion resistance. The Shaft Wall Light Gauge Steel Framing System is suitable for high-rise residential, commercial, and public infrastructure projects where safety and structural stability are critical.

Features

• High Structural Strength
  Designed for vertical shaft wall applications, providing reliable support for heavy wall boards and fire-rated assemblies.
• Excellent Corrosion Resistance
  Continuous hot-dip galvanized steel ensures long service life in enclosed or humid shaft environments.
• Precision Dimensions
  Accurate profile geometry improves wall flatness and installation efficiency.
• Fast & Efficient Installation
  Optimized profile design reduces on-site cutting and assembly time.
• System Compatibility
  Compatible with fire-rated, moisture-resistant, and standard gypsum boards.

System Components

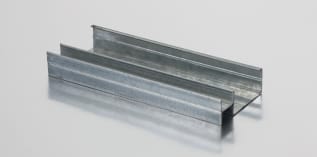

Vertical Stud Profiles

• High-strength vertical members used as the primary load-bearing structure
• Designed to support tall wall heights and heavy board assemblies

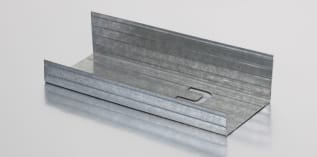

Edge & Boundary Profiles

• Used at wall edges and intersections
• Improves system rigidity and overall structural integrity

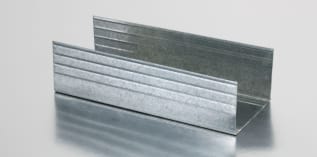

Base & Guide Tracks

• Installed at floor and ceiling levels
• Provides accurate alignment and secure fixing of vertical studs

Applications

• Elevator shafts
• Mechanical and service shafts
• Electrical and plumbing risers
• Fire-rated vertical partitions
• High-rise residential buildings
• Commercial and public facilities

Specifications
